Import

Overview

The Import page is used to add or edit a data import from a source. An import defines how source data is mapped into an AnalyticsCreator import table and how the generated import package handles the load.

Function

Use this page to maintain the import package, description, optional import SQL, filter or query options, package flags, field mappings, package variables, scripts, and package loading options.

The main import configuration defines the source-to-target import relationship and package behavior. The tabbed editor contains field mappings, variables, scripts, and performance-related options.

Save validates the import package and stores the import definition. Cancel closes the page without continuing the current edit.

Import context

When a new import is created, the Import Wizard collects the source, target schema, target table name, and package before opening the Import page for detailed editing. Existing imports open directly in the editor.

Access

Open this page when you need to add a new data import from a source or edit an existing import. Existing imports can be opened from the Import branch under Packages, from the Imports list, or from an import connection in the diagram.

How to access

Navigation tree

Packages -> Import -> [package] -> [import] -> Edit import.

Diagram

Double-click an import connection in the diagram.

Imports list

Open the Imports list and double-click an import.

Screen overview

The Import page contains the general import setup, the Main tab for fields and variables, the Scripts tab, the Options tab, and the page action buttons.

A. General import setup

ID	Property	Description
A.1	Import	Read-only relationship label showing the source-to-target import being edited.
A.2	Package	Import package that owns the mapping. A typed package name can create a new import package on save.
A.3	Description	Optional description for the import mapping.
A.4	ImpSQL	Optional SQL or query text used for the import source selection.
A.5	Filter / Query options	Optional import filter. For OData-style sources, this area can be presented as query options.
A.6	Update Statistics	Updates table statistics as part of the import package flow.
A.7	Use logging	Enables logging for the import package step.
A.8	Externally launched	Marks the owning package as launched outside the standard package run flow.
A.9	Manually created	Marks the owning package as manually maintained.
A.10	Use variable to store query	Stores the source query in a package variable when the connector supports this behavior.

B. Main tab

The Main tab contains field mappings and package variables used by the import package.

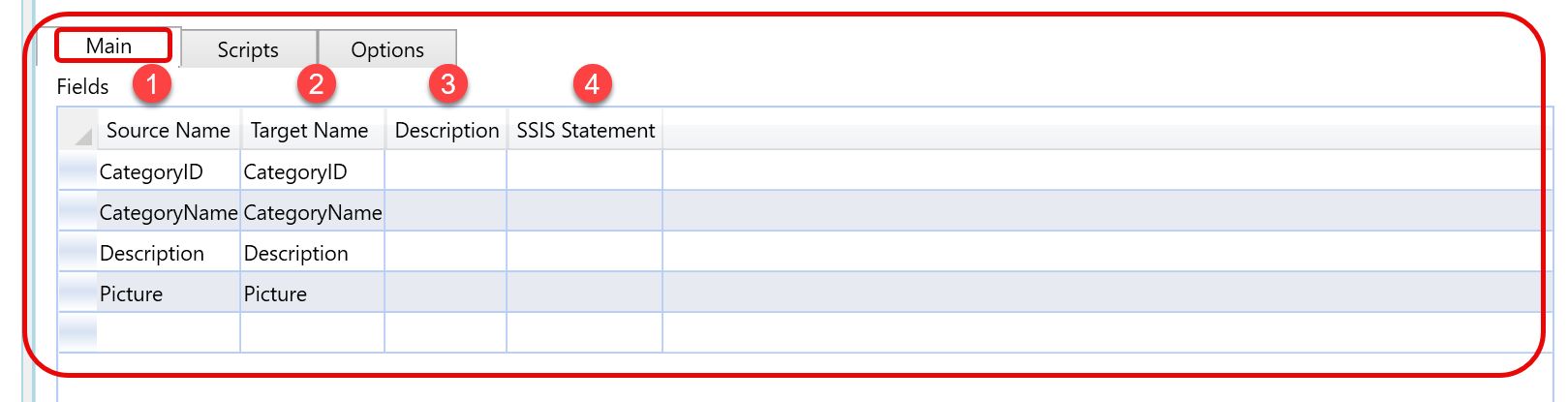

B.1 Fields

ID	Property	Description
B.1	Fields	Grid that maps source columns to target import-table columns.
B.1.1	Source name	Source column selected for the import mapping.
B.1.2	Target name	Target import-table column that receives the source value.
B.1.3	Description	Optional description for the field mapping.
B.1.4	SSIS statement	Optional package statement for the field mapping.

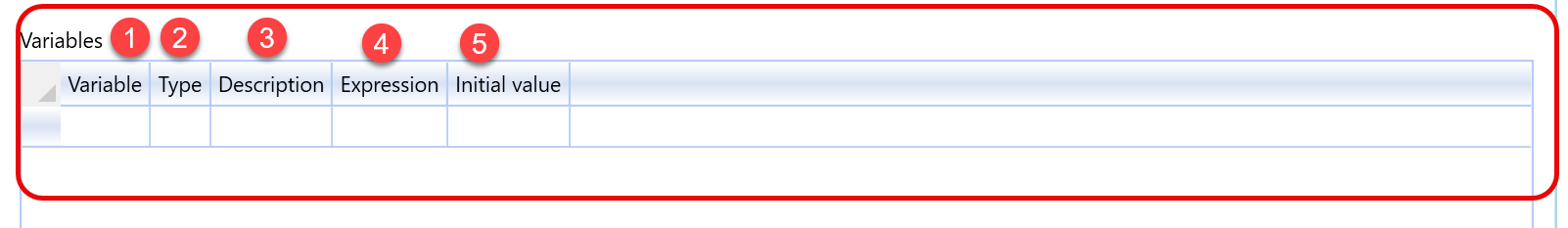

B.2 Variables

ID	Property	Description
B.2	Variables	Grid for package variables used by the import package.
B.2.1	Variable	Variable name available to the generated package.
B.2.2	Type	Variable data type: String, Integer, or Boolean.
B.2.3	Description	Optional description for the package variable.
B.2.4	Expression	Optional expression assigned to the package variable.
B.2.5	Initial value	Initial value assigned to the package variable.

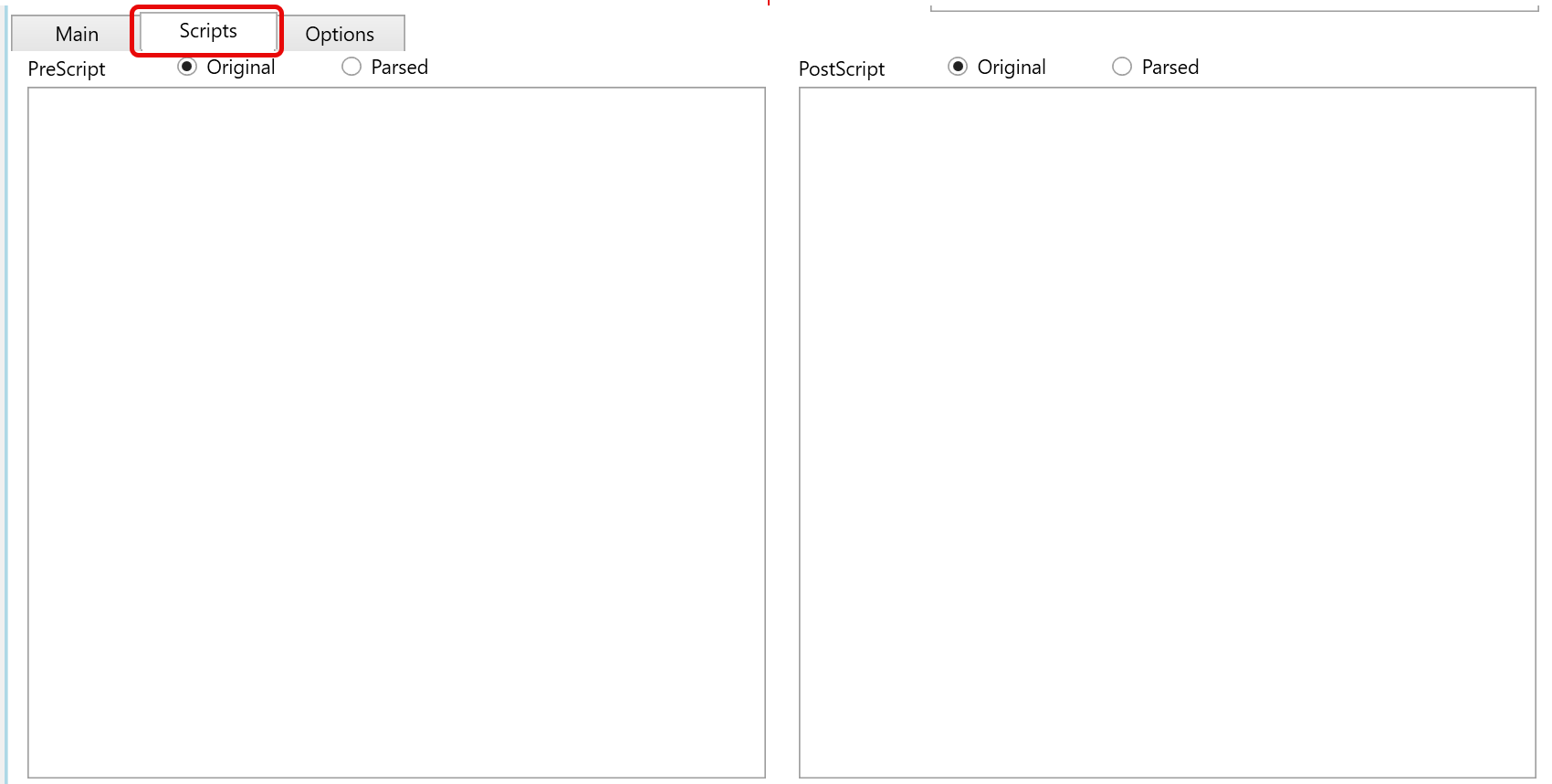

C. Scripts

ID	Property	Description
C.1	Scripts	Tab used to maintain SQL that runs before or after the import package step.
C.1.1	PreScript	SQL executed before the import package step. The script can be viewed as Original, showing the text entered by the user, or Parsed, showing the script after AnalyticsCreator resolves macros and generated expressions.
C.1.2	PostScript	SQL executed after the import package step. The script can be viewed as Original, showing the text entered by the user, or Parsed, showing the script after AnalyticsCreator resolves macros and generated expressions.

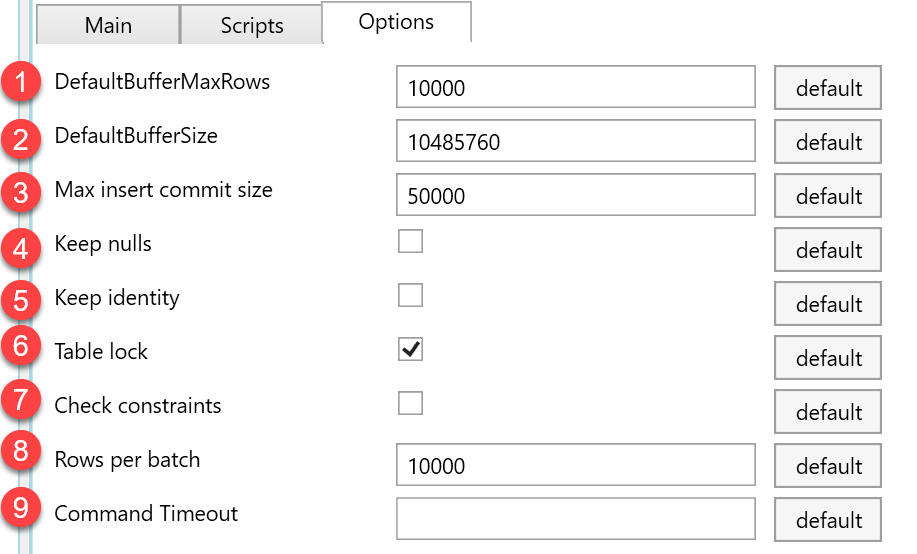

D. Options

ID	Property	Description
D.1	Options	Tab used to maintain package loading and performance settings.
D.1.1	DefaultBufferMaxRows	Maximum rows allowed in a data-flow buffer before the package uses a new buffer.
D.1.2	DefaultBufferSize	Buffer size used by the generated package data flow.
D.1.3	Max insert commit size	Maximum number of inserted rows committed in one operation.
D.1.4	Keep nulls	Preserves incoming null values instead of applying target defaults.
D.1.5	Keep identity	Keeps identity values from the incoming data when supported.
D.1.6	Table lock	Requests a table lock while rows are inserted into the target.
D.1.7	Check constraints	Controls whether target constraints are checked during load.
D.1.8	Rows per batch	Batch size used when writing rows to the target.
D.1.9	Command timeout	Timeout for import commands. Empty value falls back to the repository default.
D.1.10	default	Restores the repository default value for the option on the same row.

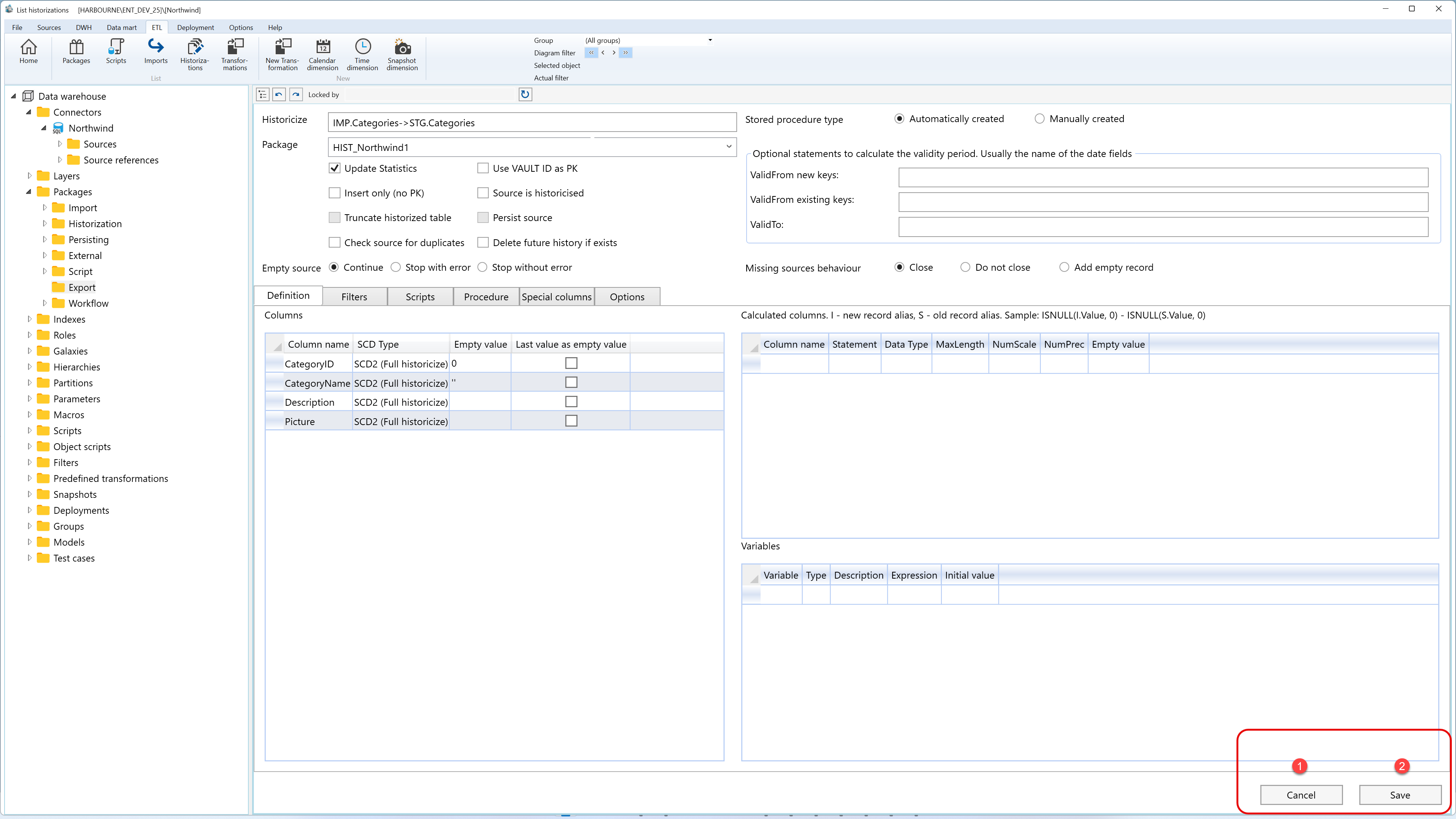

E. Page actions

ID	Action	Description
E.1	Save	Validates the package and stores the import mapping, field mappings, scripts, package flags, and options.
E.2	Cancel	Closes the page without continuing the current edit.
