Packages
Overview
The Packages navigation tree branch opens package definitions and package-type branches.
Function
Use the branch or ETL toolbar command to open the package list.

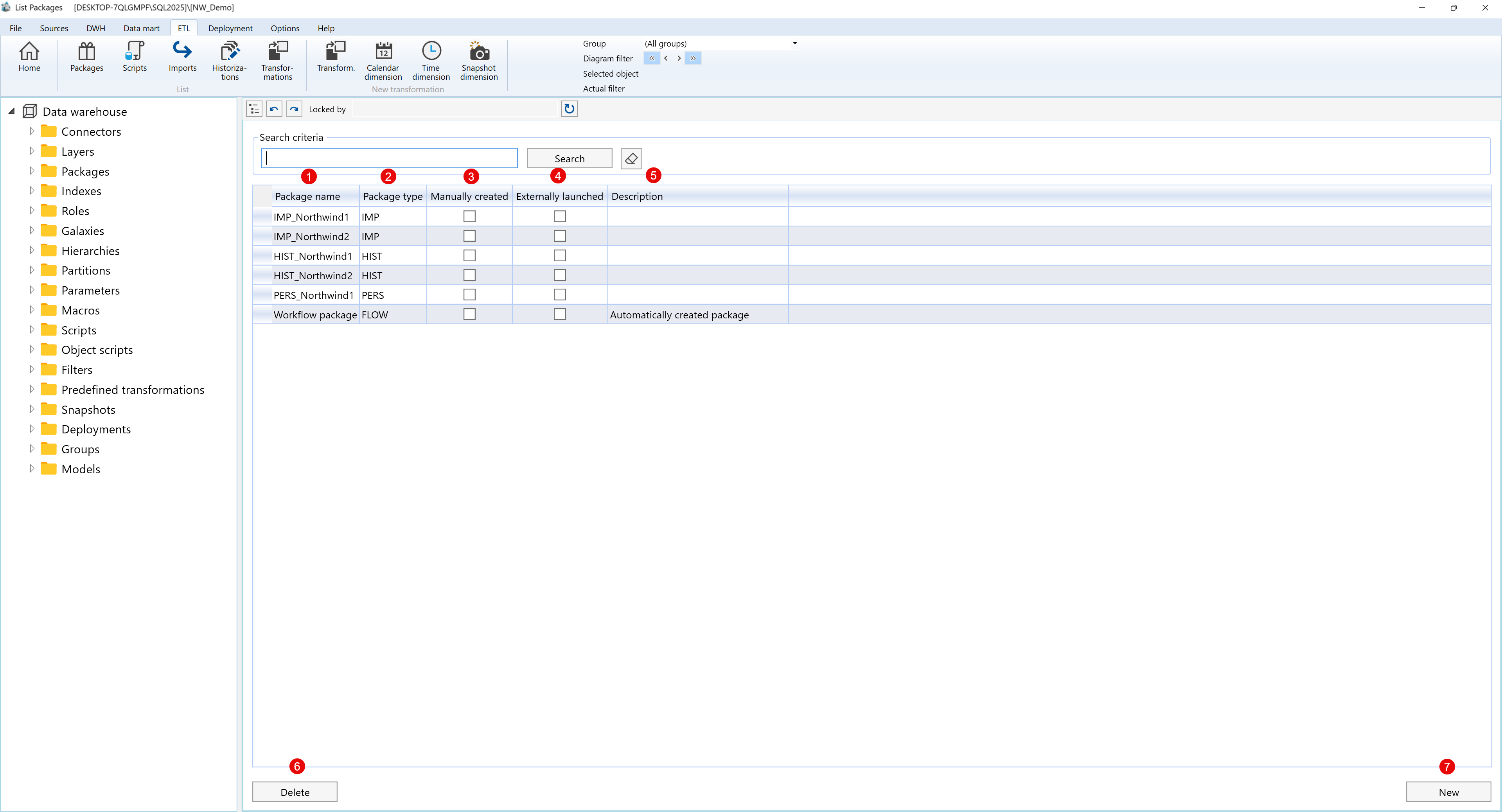

The list shows package name, package type, manual creation, external launch, and description with actions for creating or deleting packages.
Access
Open the Packages branch from the navigation tree or use the ETL toolbar tab.
How to access
Navigation tree
Packages -> List packages; Packages -> [package type] -> List packages.
Toolbar
ETL -> Packages.
Diagram
Not opened directly from the diagram.
Visual element
Packages navigation branch and list

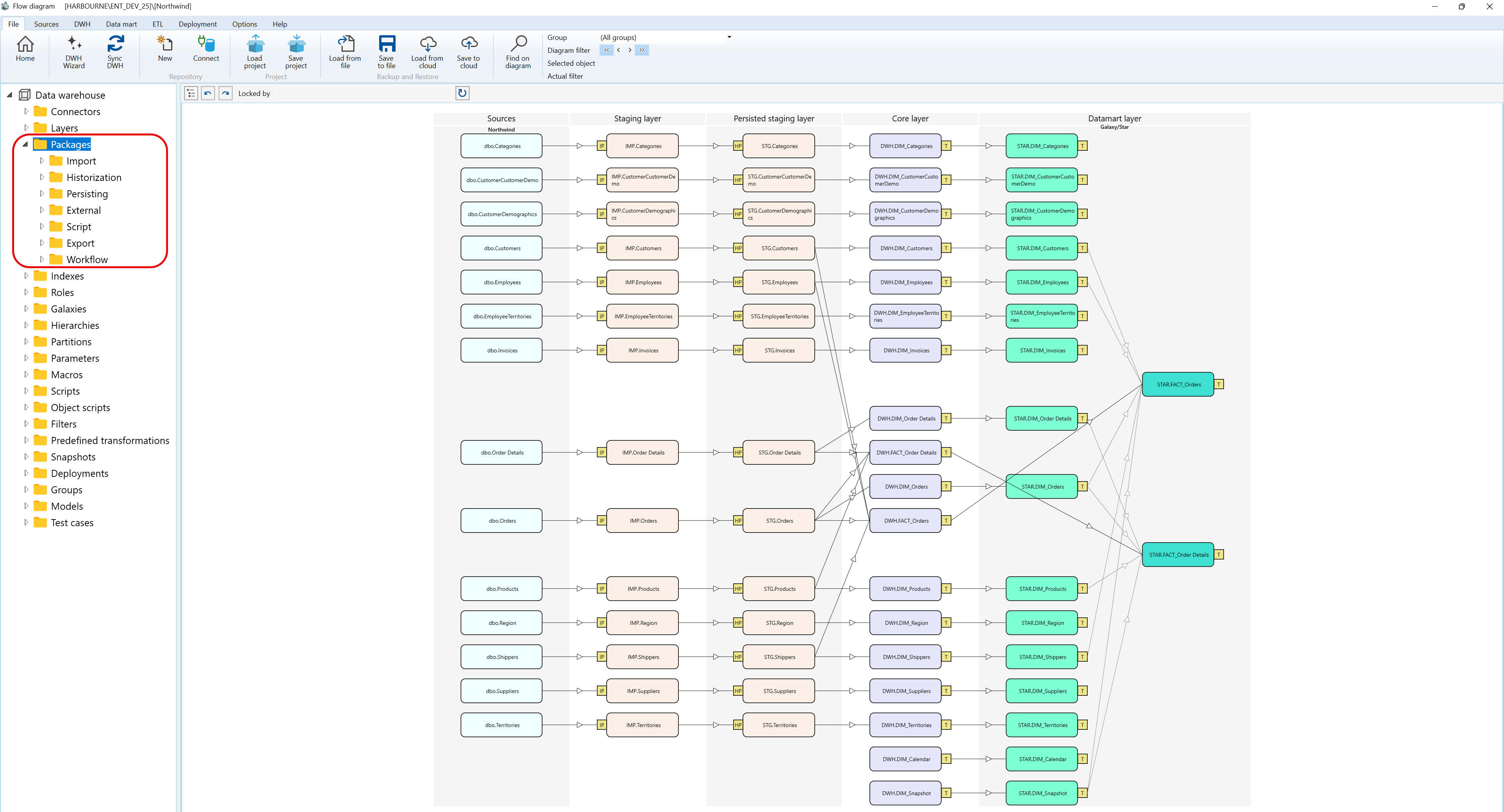

Screen overview
Context menus access - Packages - Where I can find it
The context menu examples below use the captured Data warehouse > Packages navigation tree branch and its package-type, package, and package-item nodes.

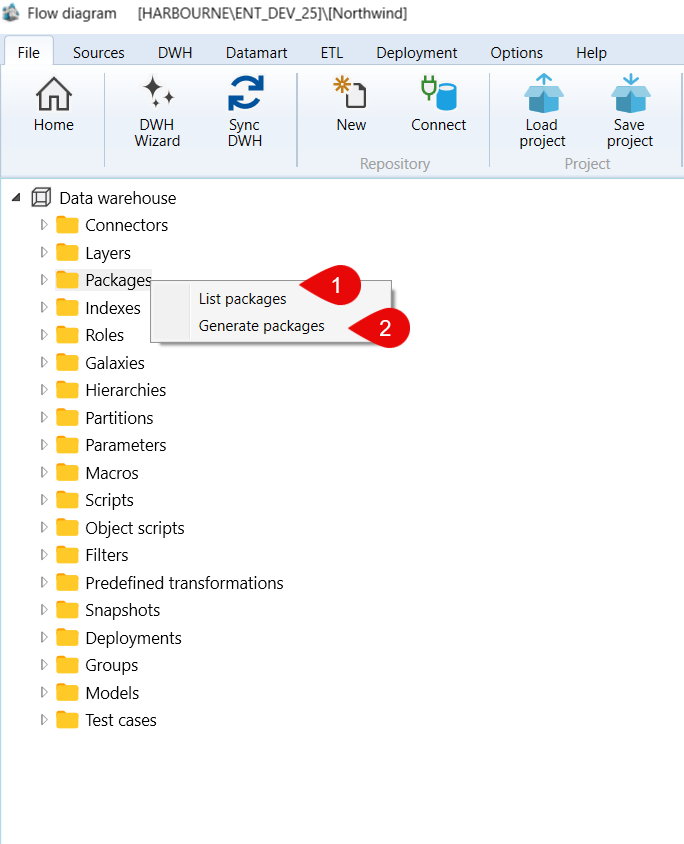

A.1) Packages
| ID | Command | Description |
|---|---|---|
| 1 | List packages | Opens the packages list for the selected branch. |
| 2 | Generate packages | Starts package generation from the Packages branch. |

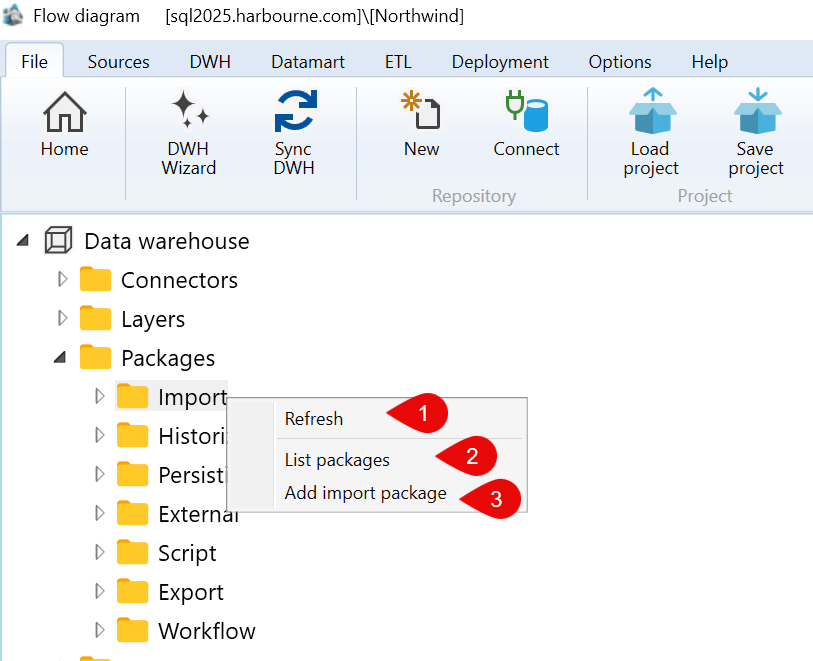

B.1) Packages > Import
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Import package type. |
| 3 | Add import package | Creates an import package in the selected context. |

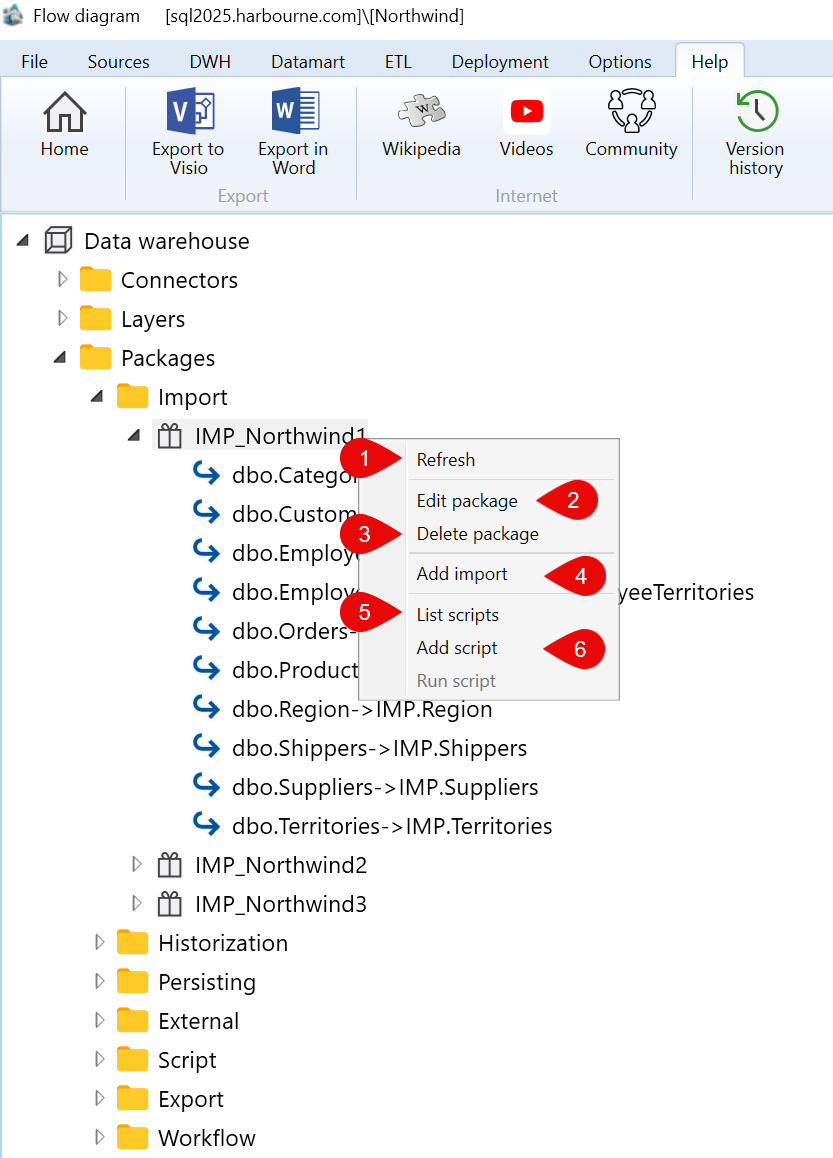

B.2) Packages > Import > IMP_Northwind1
Paste image here: Data warehouse > Packages > Import > IMP_Northwind1
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected package. |
| 2 | Edit package | Opens the selected package for editing. |
| 3 | Delete package | Deletes the selected package. |
| 4 | Add import | Adds an import item to the selected package. |
| 5 | List scripts | Lists scripts available for the selected package. |
| 6 | Add script | Adds a script to the selected package. |
| 7 | Run script | Runs a script for the selected package. |
B.3) Packages > Import > IMP_Northwind1 > dbo.Categories->IMP.Categories
| ID | Command | Description |
|---|---|---|
| 1 | Edit import | Opens the selected import item for editing. |
| 2 | Delete import | Deletes the selected import item. |

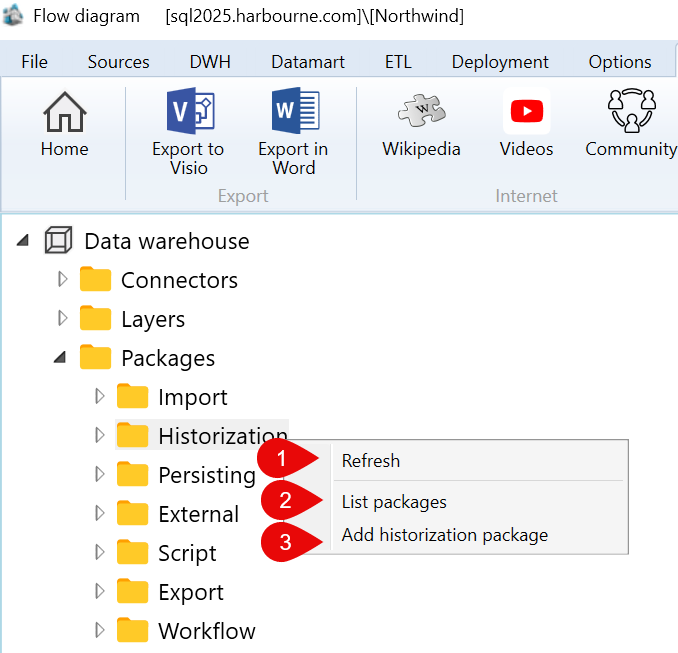

C.1) Packages > Historization
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Historization package type. |
| 3 | Add historization package | Creates a historization package in the selected context. |

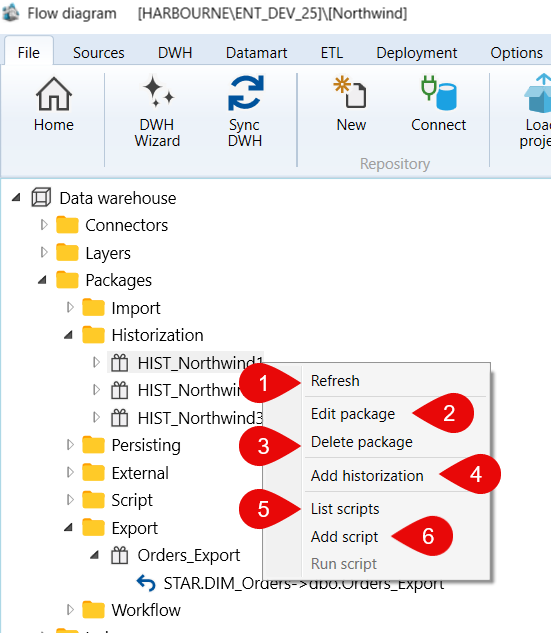

C.2) Packages > Historization > HIST_Northwind1
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected package. |
| 2 | Edit package | Opens the selected package for editing. |
| 3 | Delete package | Deletes the selected package. |
| 4 | Add historization | Adds a historization item to the selected package. |
| 5 | List scripts | Lists scripts available for the selected package. |
| 6 | Add script | Adds a script to the selected package. |
| 7 | Run script | Runs a script for the selected package. |

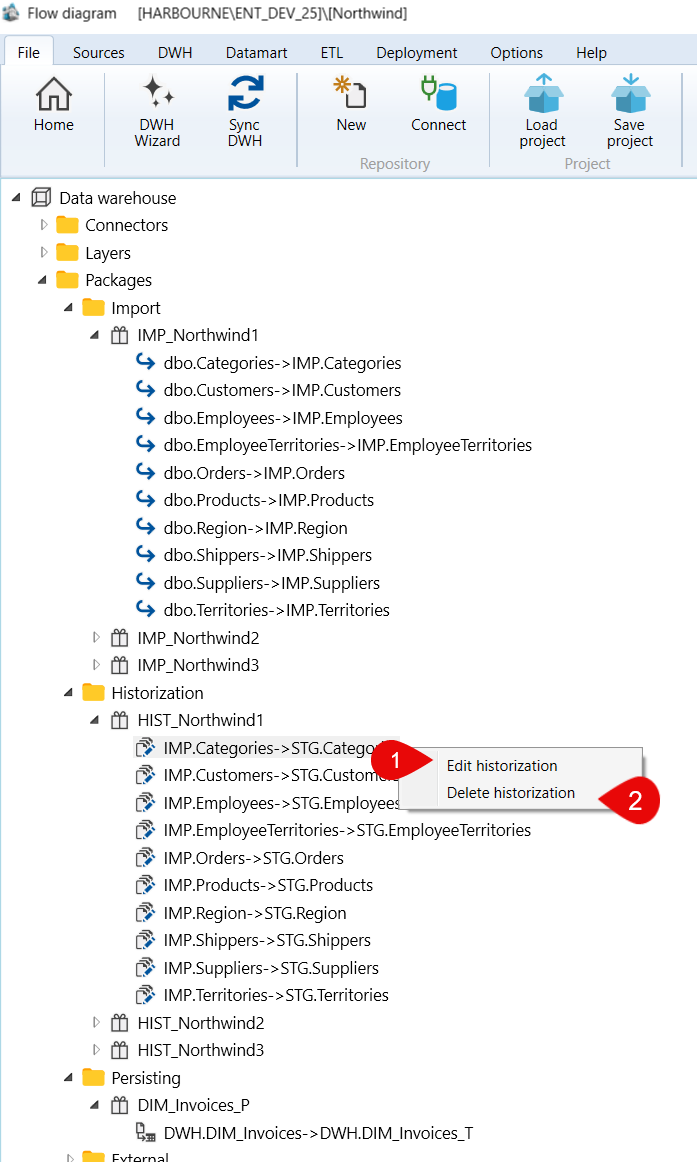

C.3) Packages > Historization > HIST_Northwind1 > IMP.Categories->STG.Categories
| ID | Command | Description |
|---|---|---|
| 1 | Edit historization | Opens the selected historization item for editing. |
| 2 | Delete historization | Deletes the selected historization item. |

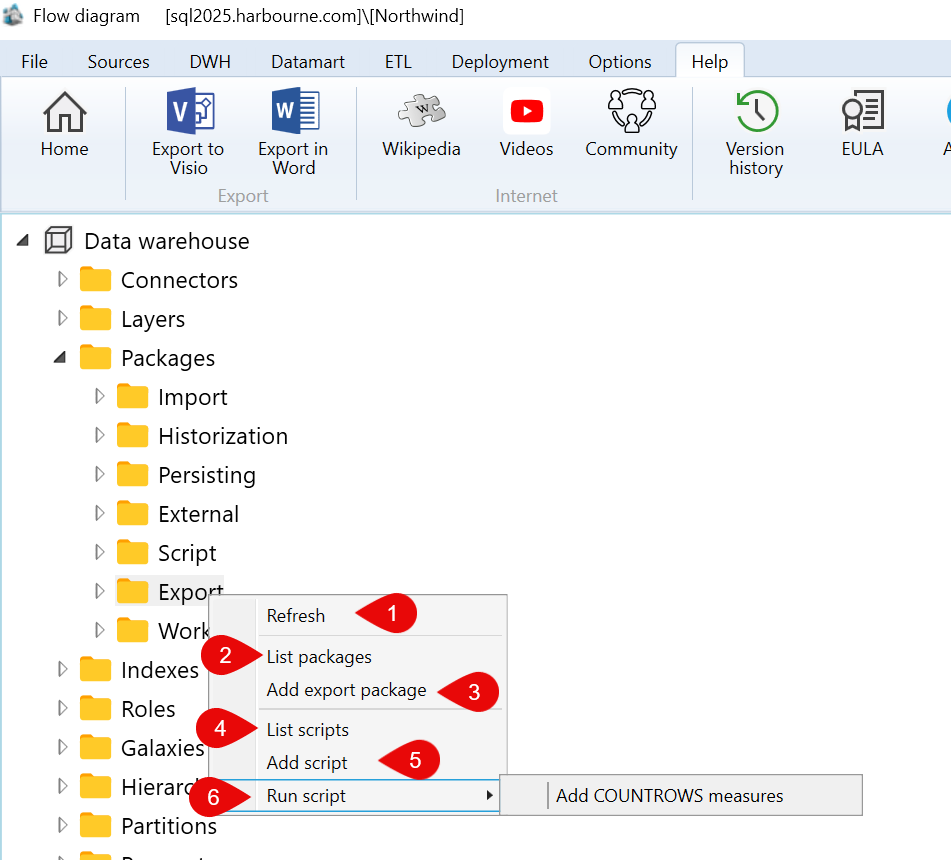

D.1) Packages > Export
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Export package type. |
| 3 | Add export package | Creates an export package in the selected context. |
| 4 | List scripts | Lists scripts available for the selected context. |
| 5 | Add script | Adds a script to the selected context. |
| 6 | Run script | Runs a script for the selected context. |

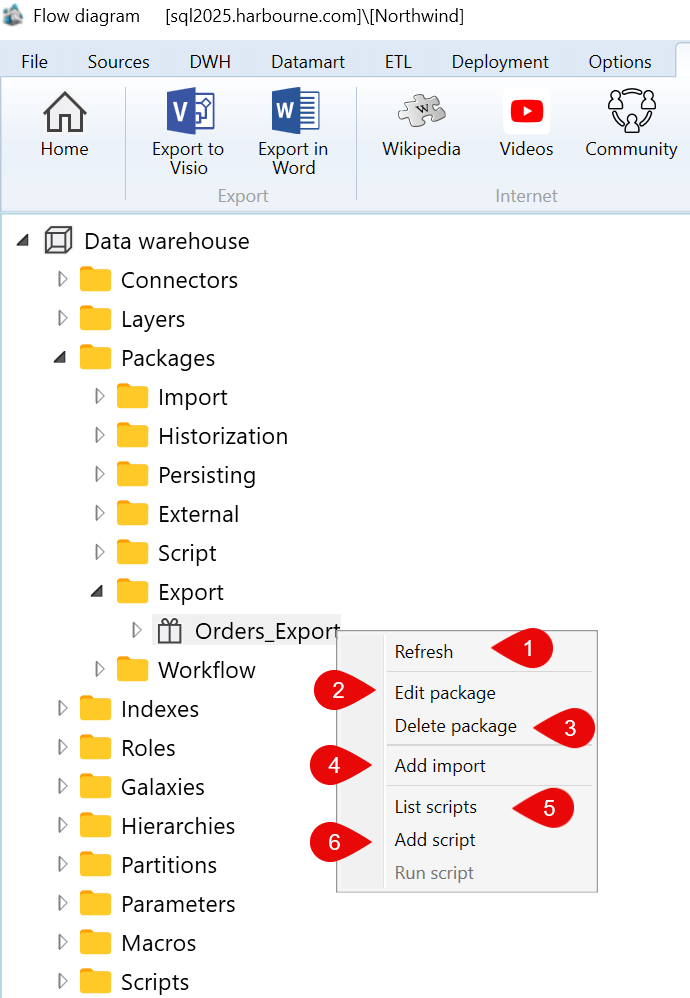

D.2) Packages > Export > Orders_Export
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected package. |
| 2 | Edit package | Opens the selected package for editing. |
| 3 | Delete package | Deletes the selected package. |
| 4 | Add import | Adds an import item to the selected package. |
| 5 | List scripts | Lists scripts available for the selected package. |
| 6 | Add script | Adds a script to the selected package. |
| 7 | Run script | Runs a script for the selected package. |

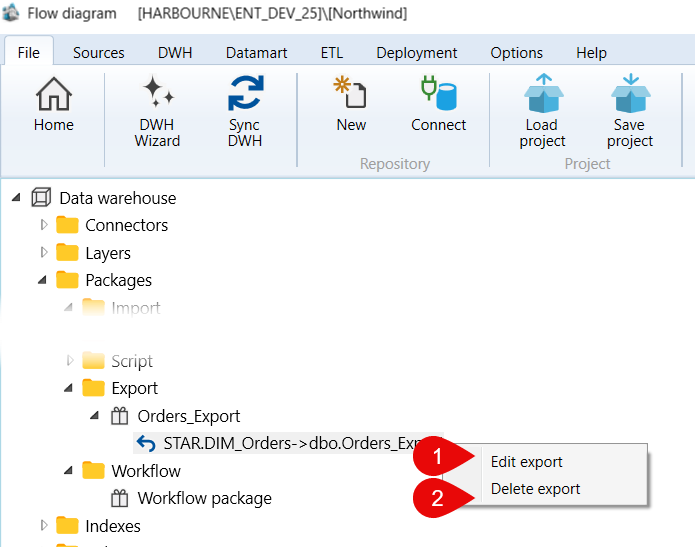

D.3) Packages > Export > Orders_Export > STAR.DIM_Orders->dbo.Orders_Export
| ID | Command | Description |
|---|---|---|
| 1 | Edit export | Opens the selected export item for editing. |
| 2 | Delete export | Deletes the selected export item. |

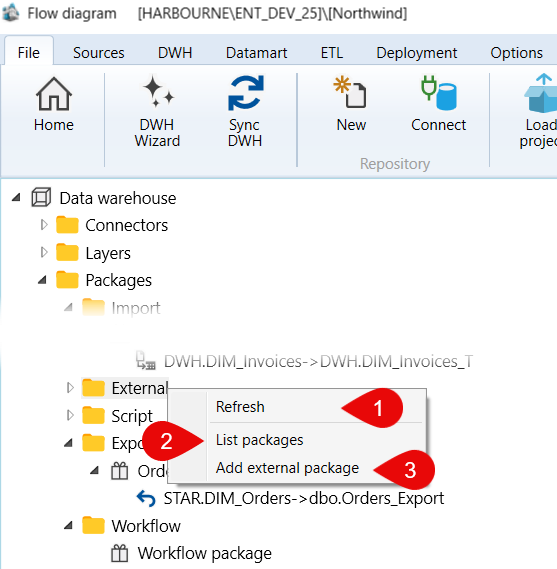

E.1) Packages > External
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the External package type. |
| 3 | Add external package | Creates an external package in the selected context. |

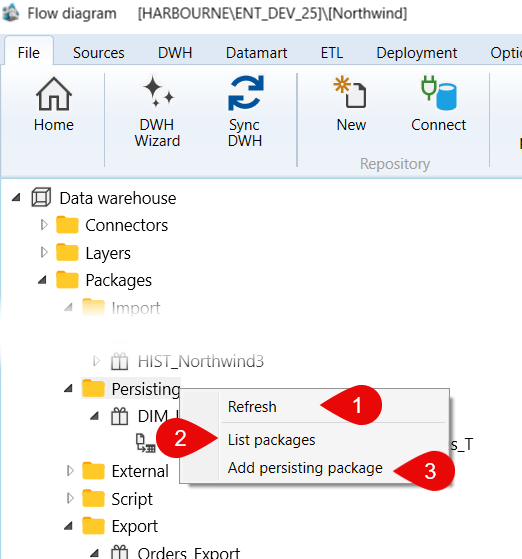

F.1) Packages > Persisting
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Persisting package type. |
| 3 | Add persisting package | Creates a persisting package in the selected context. |

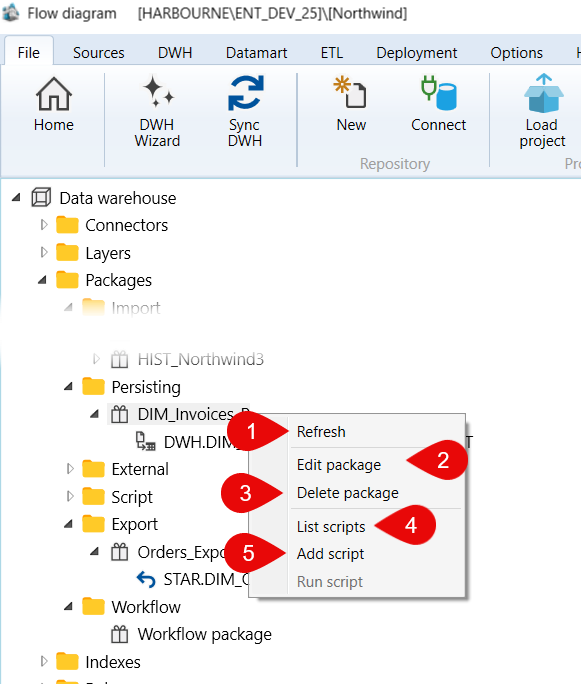

F.2) Packages > Persisting > DIM_Invoices_P
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected package. |
| 2 | Edit package | Opens the selected package for editing. |
| 3 | Delete package | Deletes the selected package. |
| 4 | List scripts | Lists scripts available for the selected package. |
| 5 | Add script | Adds a script to the selected package. |
| 6 | Run script | Runs a script for the selected package. |

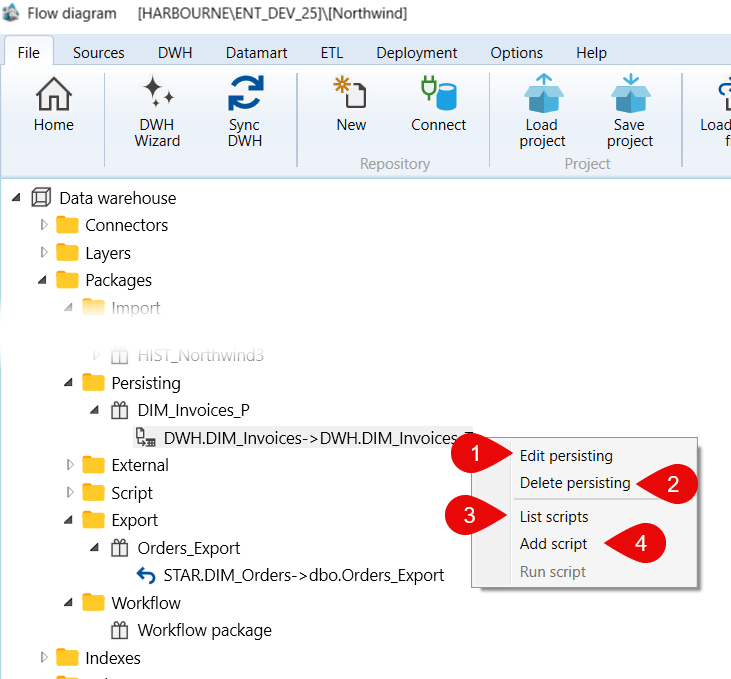

F.3) Packages > Persisting > DIM_Invoices_P > DWH.DIM_Invoices->DWH.DIM_Invoices_T
| ID | Command | Description |
|---|---|---|
| 1 | Edit persisting | Opens the selected persisting item for editing. |
| 2 | Delete persisting | Deletes the selected persisting item. |
| 3 | List scripts | Lists scripts available for the selected item. |
| 4 | Add script | Adds a script to the selected item. |
| 5 | Run script | Runs a script for the selected item. |

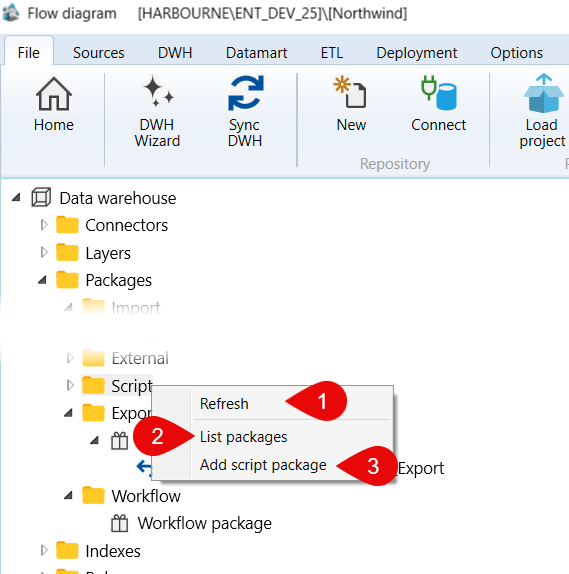

G.1) Packages > Script
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Script package type. |
| 3 | Add script package | Creates a script package in the selected context. |

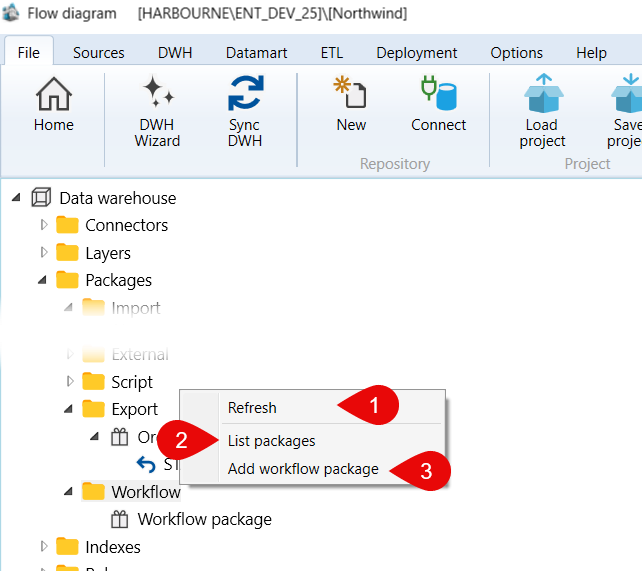

H.1) Packages > Workflow
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected branch. |
| 2 | List packages | Opens the packages list for the Workflow package type. |
| 3 | Add workflow package | Creates a workflow package in the selected context. |

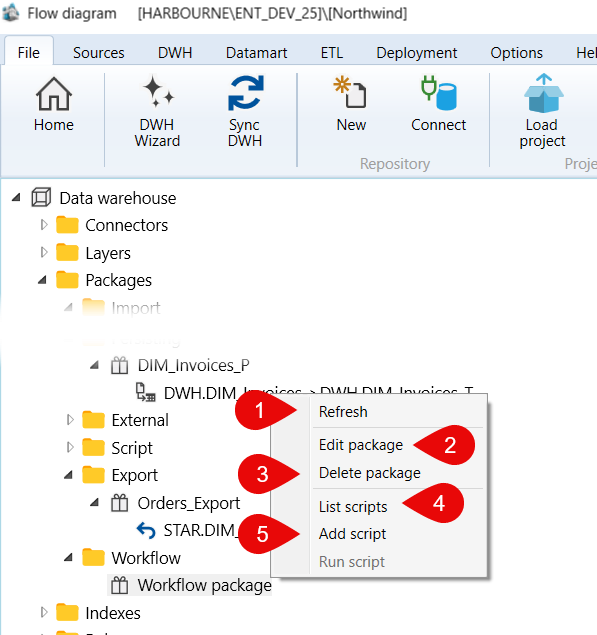

H.2) Packages > Workflow > Workflow package
| ID | Command | Description |
|---|---|---|
| 1 | Refresh | Reloads the selected package. |
| 2 | Edit package | Opens the selected package for editing. |
| 3 | Delete package | Deletes the selected package. |
| 4 | List scripts | Lists scripts available for the selected package. |
| 5 | Add script | Adds a script to the selected package. |
| 6 | Run script | Runs a script for the selected package. |
