Import

Overview

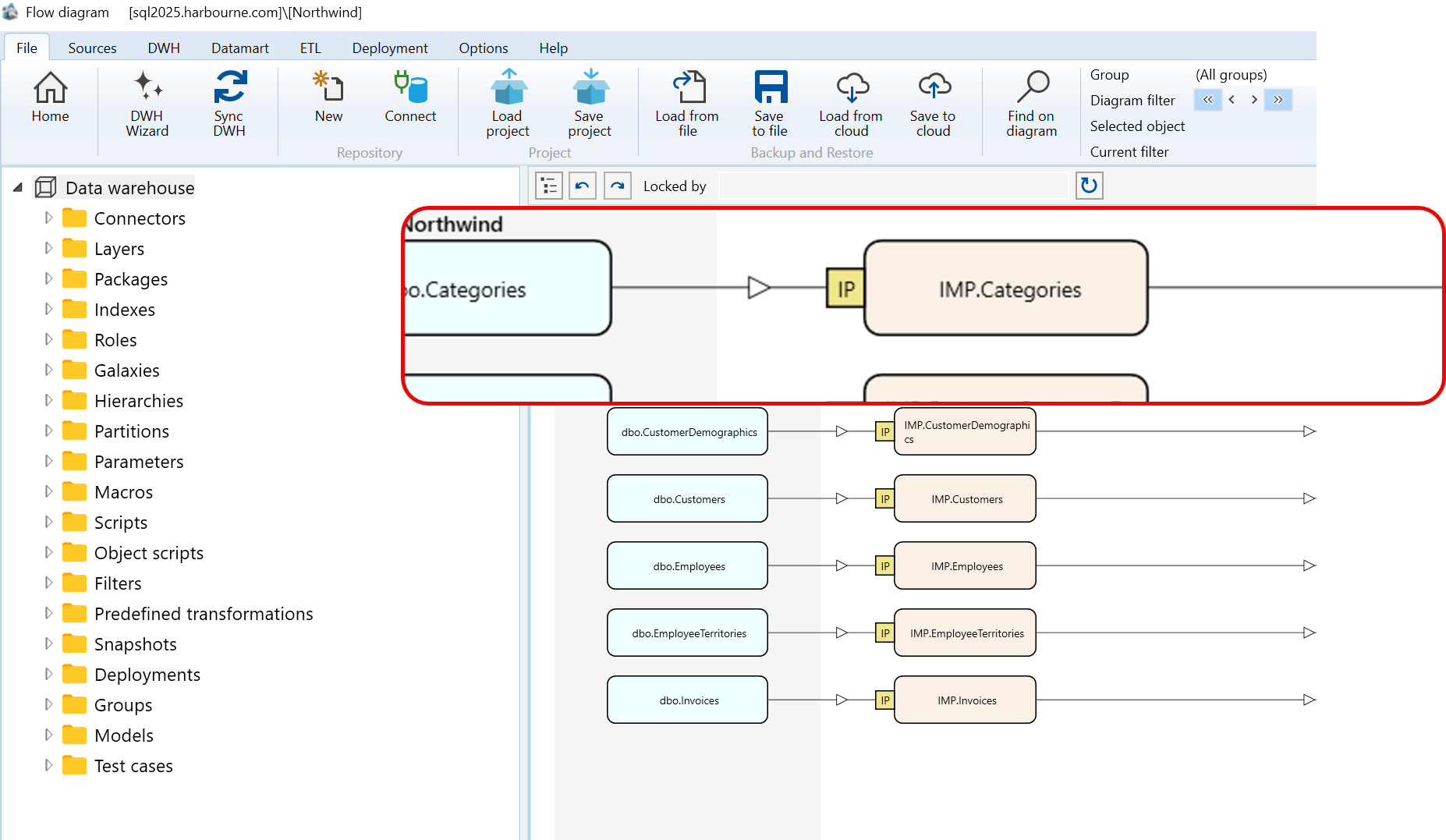

Import, shown by the IP marker, represents the flow from an external Source object into an IMP object in the Staging layer. The relationship shows where data enters AnalyticsCreator and which imported object receives it.

Function

An import flow connects a Source object, such as dbo.Categories, to an imported Staging object, such as IMP.Categories. The Source object provides the Add command used to create the import, while the IMP object provides the complete management menu for the imported object.

The IP marker identifies the import relationship between the Source and IMP objects. Use the predecessor Source rectangle for Add -> Import. The marker may expose limited diagram actions in some application versions, but it is not the owner of the complete creation menu.

Access

Imports can be created from a Source object on the dataflow diagram and maintained through the resulting IMP object, package navigation entries, and import-related list views.

How to access

Screen overview

Context menu used to create an import

Right-click the predecessor Source object, such as dbo.Categories, and select Add -> Import.

Source Add Submenu

Import object context menu

Right-click the resulting IMP object to access its management commands and the options for creating downstream objects.

Sub menus

A) Add Submenu

B) References Submenu

C) Locks Submenu

D) Import/Export object definition Submenu

E) Customize colors Submenu
