Source Wizard
The Source Wizard is used to add new data sources to the repository. To launch the Source Wizard, right-click on the "Sources" branch of a connector in the context menu and select "Add Source."
Source Wizard Functionality
The appearance and functionality of the Source Wizard will vary depending on the selected source type (Table or Query):
- Table:
When selecting Table as the data source, the wizard provides options to configure and view available tables.
Configuring a Table Data Source

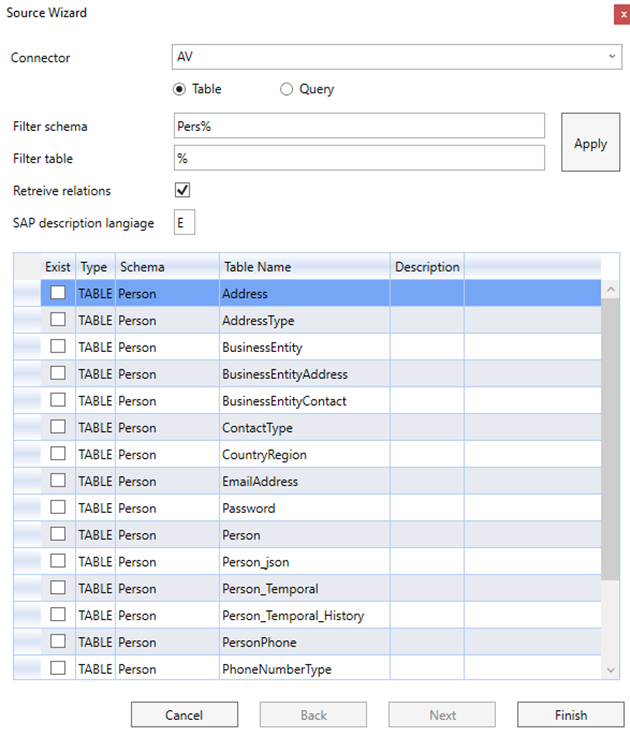

When selecting "Table" as the data source in the Source Wizard, click the "Apply" button to display the list of available source tables. Optionally, you can enter a schema or table filter to refine the results.
Configuration Options:
- Retrieve Relations: Enables the retrieval of relationships for the selected source table, if available.
- SAP Description Language: Specifies the language for object descriptions when working with SAP sources.
- SAP DeltaQ Attributes: For SAP DeltaQ sources, additional DeltaQ-specific attributes must be defined.
Configuring a Query as a Data Source
When selecting "Query" as the data source in the Source Wizard, follow these steps:

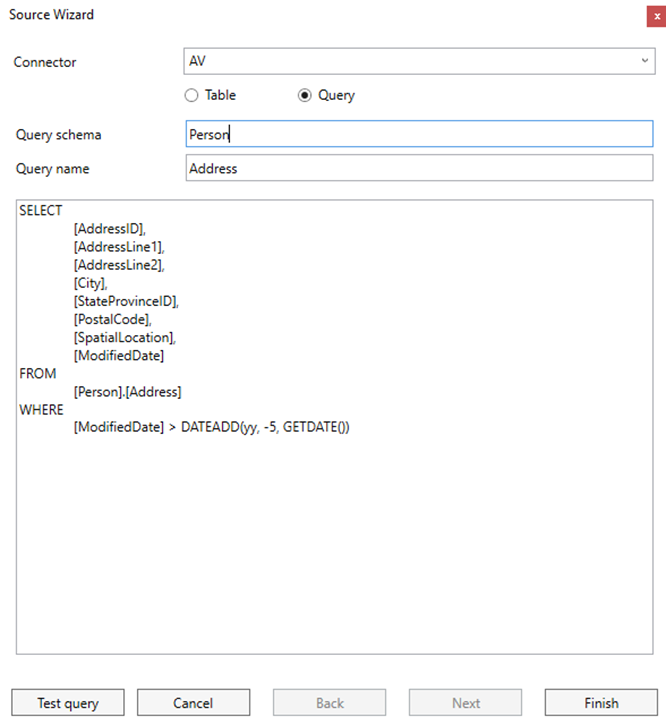

As shown in the image below, you can define the SQL query, configure parameters, and refine the data source as needed.
1. Define Schema and Name: Specify the schema and name of the source for the repository.
2. Enter the Query: Provide the query in the query language supported by the data source.
3. Test the Query: Click the "Test Query" button to verify its validity and ensure it retrieves the expected results.
4. Complete the Configuration: Click the "Finish" button to add the new source to the repository. The source definition window will open, allowing further modifications if needed.
1. Define Schema and Name: Specify the schema and name of the source for the repository.
2. Enter the Query: Provide the query in the query language supported by the data source.
3. Test the Query: Click the “Test Query” button to verify its validity and ensure it retrieves the expected results.
4. Complete the Configuration: Click the “Finish” button to add the new source to the repository. The source definition window will open, allowing further modifications if needed.

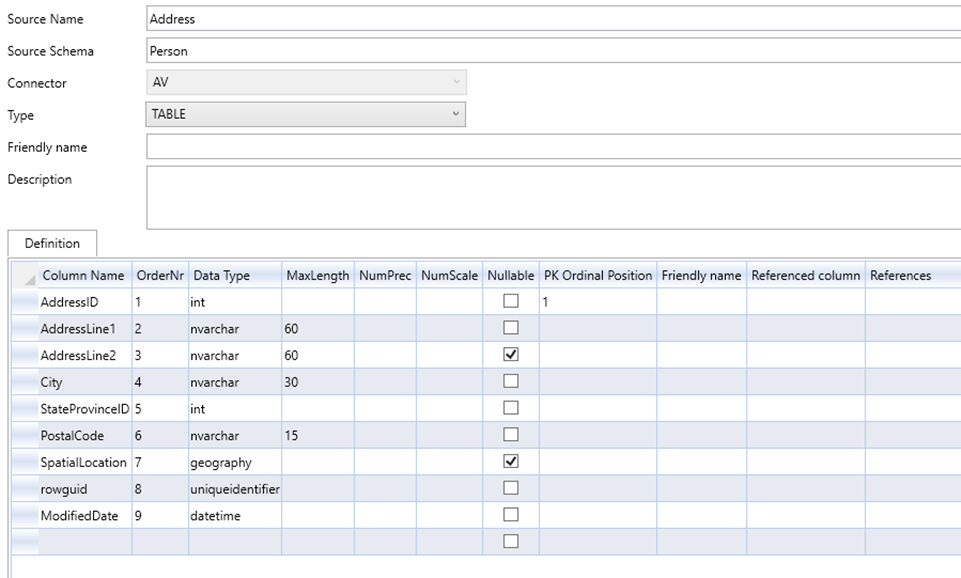

The result is shown in the image below:
